EZ-Tap Pro

Go To Product Page

The EZ-Tap Pro plugin is an advanced client for the popular EZ-Tap Pro and Versa-Tap serial monitoring devices. These devices act as a man-in-the-middle for a serial connection. They intercept all data flowing through a RS-232/RS-422/RS-485 connection (including control/status line handshaking), add high-precision timestamps and report everything back to your PC.

Basic Setup

  1. Ensure your EZ-Tap Pro is connected to your serial device and your computer.

Refer to EZ-Tap Pro’s documentation for more information.

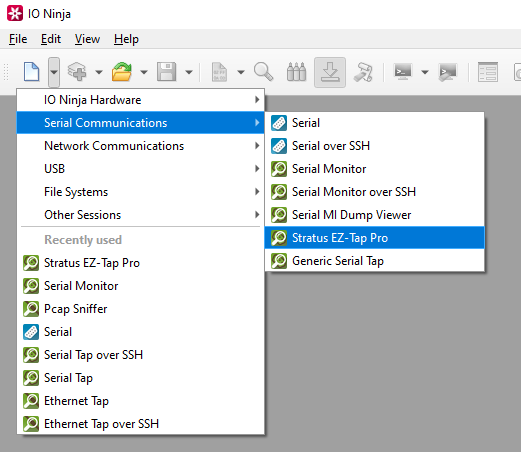

  1. In IO Ninja, click the “New Session” dropdown and select a new “EZ-Tap Pro” session.

_images/ez-tap-pro-new-session.png
  1. If not selected automatically, select your serial device from the “Port:” dropdown

_images/ez-tap-pro-port.png
  1. Start capturing by clicking the “Capture” button located to the right of the “Port:” dropdown.

_images/serial-tap-capture.png
  1. Monitor traffic in the “EZ-Tap Pro” tab.

_images/ez-tap-pro-monitor.png
  1. Adjust settings as needed via the “Settings” button (see “Settings” section below for details).

Settings

_images/ez-tap-pro-settings.png

Setting

Description

Default

Port

Specify a serial port to monitor. You can either (a) pick a port from the combo box (which should contain all serial ports detected on your machine) or (b) type the device name directly.

Baud rate

The serial baud rate.

38400 bps

Data bits

Serial data bit count (word size). See available options.

8 bits

Stop bits

Serial stop bit count. See available options.

1 bit

Parity

Serial parity check type. See available options.

None

Signal level

Serial link signal level. See available options.

RS232/TTL

Flip DTE/DCE

Flip logical sides of the tap cable.

False

Read mode
(Windows-only)

Advanced read request-specific options. See available options.

Wait for the 1st char

Read max inter-char interval (ms)

Maximum inter-character delay during read request.

10

Read parallelism
(Windows-only)

Maximum number of read requests to issue in parallel. Having more than one pending read at a time helps with increasing read throughput when incoming data arrives in rapid streams (after filling one user buffer, the kernel can immediately switch to the next one without any waiting). Increasing this number beyond 4 usually won’t yield any extra performance gains.

4

Read block size (B)

The size of each individual read block submitted to the underlying transport.

4KB

RX buffer size (B)

The full size of the incoming data (RX) buffer. Affects read throughput.

16KB

RX buffer full notifications

Toggle warnings in log about the incoming data (RX) buffer getting full.

False

Serial setting changes

Toggle notifications about serial setting (baud rate, data size, parity, stop bits, flow control) changes in the log.

on

DTR/RTS changes

Toggle notifications about control line (DTR, RTS) changes in the log.

on

DSR/CTS/DCD/RI changes

Toggle notifications about status line (DSR, CTS, DCD, RI) changes in the log.

on

Serial line errors

Toggle warning about serial line errors (PARITY, FRAMING and BREAK) in the log.

on

Data Bit Options

Option

5 bits

6 bits

7 bits

8 bits

Parity Options

Option

Description

None

No parity bit is used

Odd

Odd parity (parity bit is set when the number of logical ones in the UART frame is odd).

Even

Even parity (parity bit is set when the number of logical ones in the UART frame is even).

Mark

Parity bit is present and always set.

Space

Parity bit is present and always clear.

Stop Bit Options

Option

1 bit

1.5 bits

2 bits

Signal Level Options

Option

RS232/TTL

RSS422/485

Inverted RS232/TTL

Read Mode Options (Windows-only)

Option

Description

Check COMSTAT.cbInQue

Prior to reading, check the status of the incoming buffer of the serial driver. Only read the number of bytes available there.

Wait for the 1st character

Read requests return as soon as possible (as soon as at least one byte arrives).

Interval-based

Read requests keep accumulating bytes until the inter-character delay exceeds the limit specified by “Read inter-char interval (ms)” or the buffer is full.

Note

Typically, it’s best to leave the Read Mode setting at its default (Wait for the 1st character), unless compatibility issues require a change. The default setting is optimal in most situations.
