Ethernet Tap over SSH

Go To Product Page

The Ethernet Tap over SSH plugin extends the power and simplicity the IO Ninja Ethernet Tap to remote Linux devices, enabling tapping of ethernet on devices like headless Raspberry Pi boards.

Basic Setup

Prerequisites

Enabling SSH

On most Linux machines, SSH is enabled by default. However, if it is not, you will need to enable it.

On Raspbian and many other popular distros, you can perform the following command:

systemctl enable --now sshd

For other Linux distributions, please refer to their documentation.

Installing the Hardware Client

The Ethernet Tap over SSH plugin uses the IO Ninja Hardware Client (ioninja-hwc).

This hardware client needs to be installed and configured on the remote machine.

See “Installing the Hardware Client” for instructions.

SSH’ing into your Linux Machine with IO Ninja

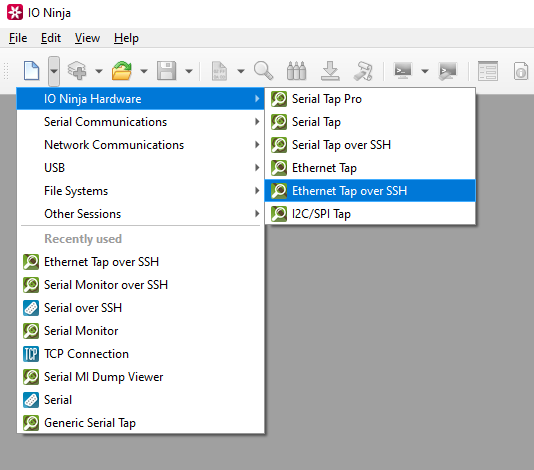

  1. In IO Ninja, click “New Session” and select a new “Ethernet Tap over SSH” session.

_images/ssh-ethernet-tap-new-session.png
  1. Type the host address of your remote Linux machine into the “Address:” field.

_images/ssh-ethernet-tap-ip.png
  1. Click the “Capture” button to the right of the “Port:” field to initiate a connection.

You will be prompted for SSH credentials.

_images/ssh-ethernet-tap-capture.png
  1. Analyze the log as needed.

_images/ssh-ethernet-tap-log.png

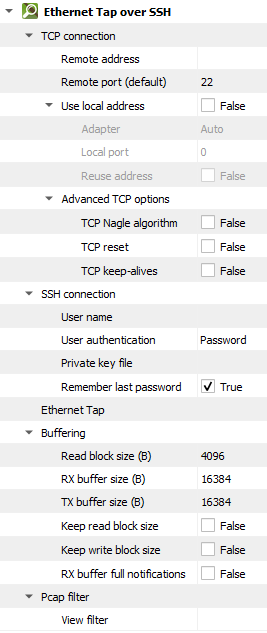

Settings

_images/ssh-ethernet-tap-settings.png

Setting

Description

Default

Remote address

Remote address to connect to. Can be specified via IPv4 (127.0.0.1), IPv6 (::1), or a domain name (localhost). Remote address can be suffixed with the remote port after a colon, e.g. ioninja.com:443.

Remote port (default)

Remote port to connect to in cases when a port is not explicitly specified in Remote address.

80

Use local address

Bind socket to the specified local address.

False

Adapter

Local network adapter to bind to. Pick one from the list of installed network adapters (or bind to all installed IP4 or all IP6 adapters at once).

Auto

Local port

Local port to bind to. Setting this to 0 auto-selects an available port.

8080

Reuse address

Allow multiple sockets to share the same local address. Maps to the SO_REUSEADDR socket option. Please note, the support and details of implementation for this option are highly platform-specific.

False

TCP Nagle algorithm

Delay transmission to reduce the number of small TCP packets. Maps to the TCP_NODELAY socket option.

False

TCP reset

Drop TCP connections abruptly with a TCP RST packet. Maps to the SO_LINGER socket option.

False

TCP keep-alives

Detect connection loss with TCP keep-alive probes. Maps to the TCP_KEEPALIVE socket option.

False

User name

User name for SSH authentication.

User authentication

SSH authentication method (password or private key)

Password

Private key file

Private key file for SSH authentication.

Remember last password

Re-use the last entered password during subsequent connect attempts.

True

Read block size (B)

The size of each individual read block submitted to the underlying transport.

4KB

RX buffer size (B)

The full size of the incoming data (RX) buffer. Affects read throughput.

16KB

TX buffer size (B)

The full size of the outbound data (TX) buffer. Affects write throughput..

16KB

Keep read block size

Don’t merge read blocks in RX buffer. Incoming data blocks coming in quick succession can be merged together so that IO Ninja writes them to log as a whole. When this option is set to True, blocks are written to the log without merging, i.e., exactly as they are received from the underlying transport..

False

Keep write block size

Don’t merge write blocks in TX buffer. Outbound data blocks sent in quick succession can be merged together before submission to the underlying transport. When this option is set to True, blocks are submitted to the transport without merging, i.e., exactly as they are sent by the Transmit or Script panes..

False

RX buffer full notifications

Toggle warnings in log about the incoming data (RX) buffer getting full.

False

View filter

Term to filter with when displaying packets.
